Moulding Inductor(Flat Wire)

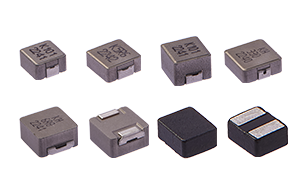

• Moulding Inductor(Alloy Powder)

  KOHER's MDA Series represents the latest advancements in pressed powder inductors for automotive applications. The MDA Series features superior performance under harsh ambient conditions and with current ratings up to 100 A. The MDA Series is AEC-Q200 compliant to ensure automotive grade mechanical and electrical performance, specifically at high operating temperatures.. Their robust molded construction provides great heat dissipation and low EMI. The MDA product has a operating temperature -55°C to +155 °C. With a variety of different SMT package sizes from 5 mm and 23 mm and inductance values up to 100uH, the MDA Series is ideal for a wide range of automotive applications anywhere in the vehicle. The MDA Series is conveniently packaged in tape and reel per EIA standards.

  Products

  MDA(Automotive Grade) MDA HT(Automotive Grade) MDE(Commercial Grade)

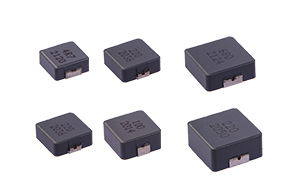

• Moulding Inductor( Carbonyl Powder)

  KOHER's MDCA Series uses pressed powder construction providing a robust high current low EMI inductor ideal?for automotive applications. The MDCA Series features superior performance under harsh ambient conditions and with current ratings up to 130A. The MDCA Series is AEC-Q200 compliant to ensure automotive grade mechanical and electrical performance, specifically at high operating temperatures. Their robust molded construction provides great heat dissipation and low EMI. The MDCA Series has a operating temperature -55°C to +125 °C. With a variety of different SMT package sizes from 5 mm to 18mm and inductance values up to 100uH, the MDCA Series is ideal for a wide range of automotive applications anywhere in the vehicle. The MDCA Series conveniently packaged in tape and reel per EIA standards.

  Products

  MDCA(Automotive Grade) MD(Commercial Grade)

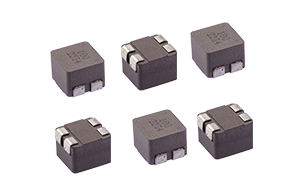

• Dual Moulding Inductor

  KOHER's DMDA Series is a unique high current molded coupled inductor suitable for high performance automotive applications. It's 1:1 winding ratio makes it suitable for wide range SEPIC converters. Offers inductance values up to 33uH, and high operating current capability throughout a wide temperature range of -55 °C to +155 °C. DMDA Series comes in one popular 10 mm x 8 mm package and is?AEC-Q200 Qualified.

  Products

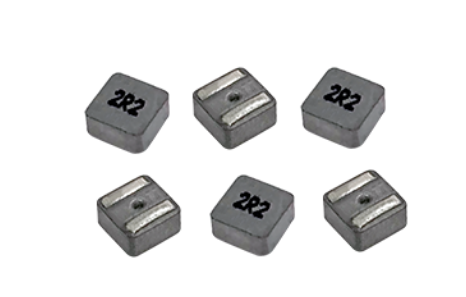

• Moulding Inductor（Flat Wire）

  KOHER's MDHA SERIES is automotive grade family of next-generation pressed powder high-current inductors. They provide a wide range of inductances from 0.15 ?H to 15 ?H. and available in 4 mm, 5 mm, 6 mm, 7 mm and 10 mm high power density sizes. Their advanced molded construction is excellent for higher currents requiring low saturation and stability across a wide operating temperature range from -55℃ to +155℃ (Including self - temperature rise). Each product in the MDHA line is magnetically shielded for superior EMI immunity.

  Products

  MDTE(Commercial Grade) MDTA(Automotive Grade)
